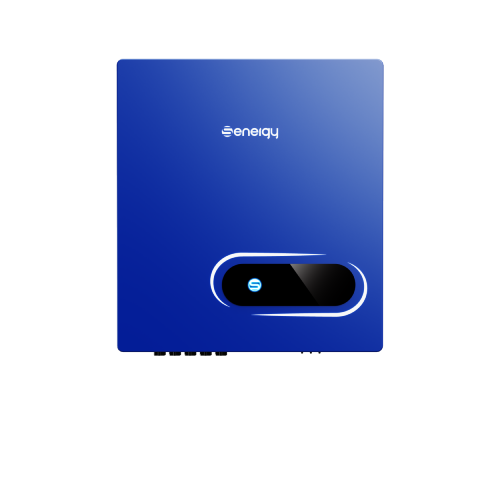

SE 17/20/22/25KTL-D3/G2
Features
Maximum efficiency 98.4%
Max String Current 20A, compatible with 600W+ modules
150% PV configuration, 110% output overload
Die-cast aluminum case, IP66 waterproof and dustproof, CS anti-corrosion
DC /AC SPD, AFCI detection optional
Compatible with wide power grid voltage and high harmonic power grid environment
App quick commissioning
Remote configuration and upgrade
Supports export control
https://www.senergytec.com/product/residential-inverter/se-17-20-22-25ktl-d3-g2/
Model
SE 10KTL-D3/G2P
SE 12KTL-D3/G2P
SE 15KTL-D3/G2P
SE 17KTL-D3/G2
SE 20KTL-D3/G2
SE 22KTL-D3/G2
SE 25KTL-D3/G2
Efficiency
Max. Efficiency
98.3%
98.3%
98.4%
98.4%
98.4%
98.4%
98.4%
European Efficiency
97.8%
97.8%
98.0%
98.0%
98.0%
98.0%
98.0%
Input(PV)
Max. Input Voltage
1100V
Max. PV configuration
150%
Rated Input Voltage
620V
Max. Input Current
30A+15A
2*30A
Max.Short Circuit Current
40A+20A
2*40A
Start Input Voltage
180V
MPPT Operating Voltage Range
160V-1000V
Max. Number of PV Strings
3(2/1)
4(2/2)
No. of MPPTs
2
Output(Grid)
Rated AC Active Power
10,000W
12,000W
15,000W
17,000W
20,000W
22,000W
25,000W
Max. AC Apparent Power
11,000VA
13,200VA
16,500VA
18,700VA
22,000VA
24,200VA
25,000VA
Max. AC Active Power (PF=1)
11,000W
13,200W
16,500W
18,700W
22,000W
24,200W
25,000W
Max. AC Output Current
3*16.8A
3*20.2A
3*25.3A
3*28.6A
3*33.7A
3*37A
3*39.8A
Rated AC Voltage
380V/400V/415V, 3W+N+PE
AC Voltage Range①
260V-510V (Adjustable)
Rated Grid Frequency
50Hz/60Hz
Grid Frequency Range②
45Hz-55Hz/55Hz-65Hz (Adjustable)
THDI
<3%@Rated Power
DC Current Injection
<0.5%@Rated Current
Power Factor
> 0.99 Rated power (Adjustable 0.8 LD – 0.8 LG)
Protection
DC switch
Support
Anti-islanding protection
Support
AC overcurrent protection
Support
AC short circuit protection
Support
DC reverse connection
Support
Surge Arrester
AC Type III (Type II optional) / DC Type III (Type II optional)
Insulation detection
Support
String current detection
Optional
Leakage current protection
Support
General
Topology
Transformerless
IP Rating
IP66
Night Self Consumption
<1W
Cooling
Natural cooling
Fan cooling
Operating Temperature Range
-25℃-60℃
Relative Humidity Range
0-100%
Max. Operating Altitude
4000m
Noise
<45dB
Dimensions (W*H*D)
398mm*460mm*190mm
Weight
23Kg
HMI & COM
Display
Wireless & APP+LED, LCD (Optional)
Communication
RS485, Optional：WiFi/GPRS/4G
Certification
Safety
IEC 62109-1, IEC 62109-2
Grid Code
VDE-AR-N 4105, EN 50549-1, CEI 0-21, UNE 206006/206007-1, UNE 217001, IEC 61727/62116
Warranty
5 Years
