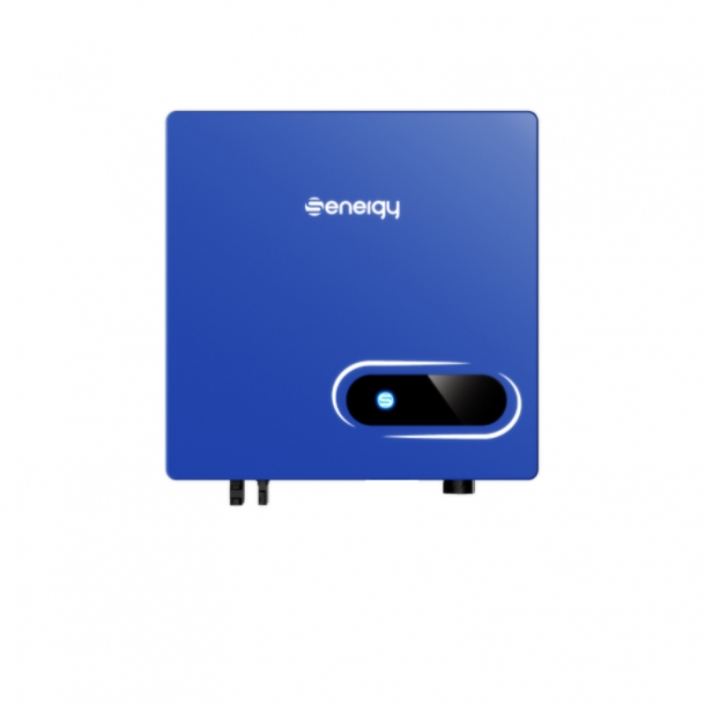

SE 4/5/6KTL-D1/G2
Features
Maximum efficiency 98.2%
String current 15A , compatible with high Power modules
150% PV configuration , 110% output overload
IP65 waterproof and dustproof, C5 anti-corrosion
Natural cooling
Remote configuration and upgrade
Supports export power control
Model
SE 4KTL-D1/G2
SE 5KTL-D1/G2
SE 6KTL-D1/G2
Efficiency
Max. Efficiency
98.0%
98.2%
98.2%
European Efficiency
97.0%
97.3%
97.4%
Input(PV)
Max. Input Voltage
550V
Max. PV configuration(STC)
150%
Rated Input Voltage
360V
Max. Input Current
30A (2*15A)
Max.Short Circuit Current
40A(2*20A)
Start Input Voltage
90V
MPPT Operating Voltage Range
70V-540V
Max. Number of PV Strings
2(1/1)
No. of MPPTs
2
Output(Grid)
Rated AC Active Power
4,000W
5,000W
6,000W
Max. AC Apparent Power
4,400VA
5,500VA
6,000VA
Max. AC Active Power (PF=1)
4,400W
5,500W
6,000W
Max. AC Output Current
20A
25A
27.3A
Rated AC Voltage
220V/230V,L+N+PE
AC Voltage Range①
160V-300V(Adjustable)
Rated Grid Frequency
50Hz/60Hz
Grid Frequency Range②
45Hz-55Hz/55Hz-65Hz(Adjustable)
THDI
<3%（Rated Power）
DC Current Injection
<0.5%ln
Power Factor
> 0.99 Rated power (Adjustable 0.8 LD- 0.8 LG)
Protection
DC switch
Support
Anti-islanding protection
Support
AC overcurrent protection
Support
AC short circuit protection
Support
DC reverse connection
Support
Surge Arrester
DC Type III(Optional) / AC Type III
Insulation detection
Support
Leakage current protection
Support
General
Topology
Transformerless
IP Rating
IP65
Night Self Consumption
<1W
Cooling
Natural cooling
Operating Temperature Range
-25℃-60℃
Relative Humidity Range
0-100%
Max. Operating Altitude
4000m
Noise(typical)
30dB
Dimensions (W*H*D)
350mm*347mm*137mm
Weight
8.5Kg
HMI & COM
Display
Wireless & APP +LED, LCD(Optional)
Communication
Optional: RS485/WiFi /GPRS/4G/LAN
Certification
Safety
IEC62109-1,IEC62109-2
Grid Code
IEC61727/62116,ABNT 16149/16150,IEEE 1547,AS 4777
Warranty
5 Years
