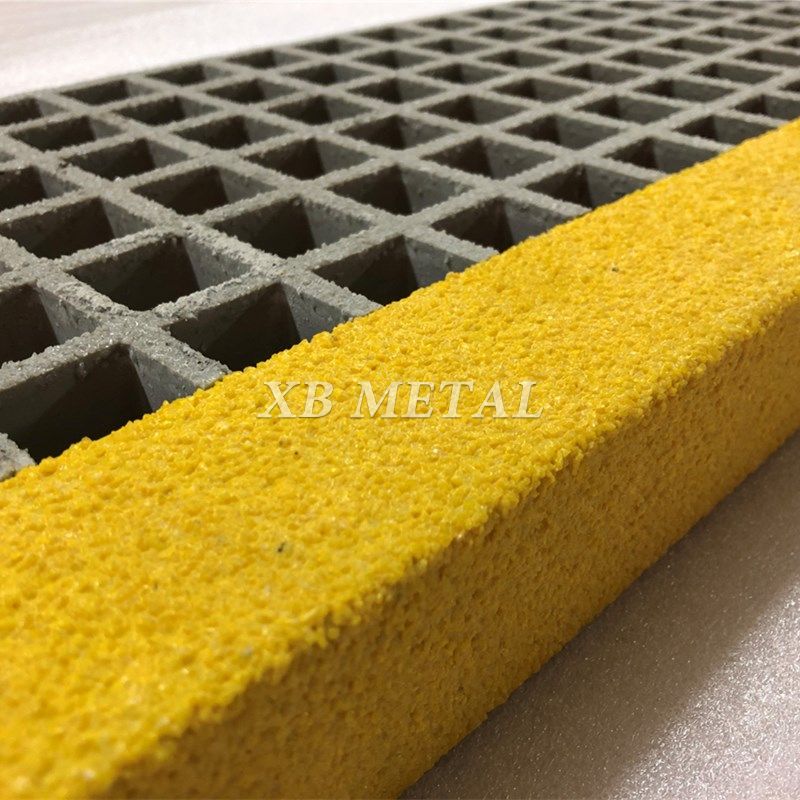

Walkway Grating Plastic
Walkway Grating Plastic
Product Name: Lightweight 30 × 38 × 38 FRP Grating Chemical Aspect: 1220mm X 2440mm / 1220mm X 3660mm
Mesh: 38mm X 38mm , 25mm X 25mm , 50mm X 50mm
Length: 1007×4007, 1207×4047, etc.
Width: 3007mm,3660mm,4047mm
Color: black\gray\white\yellow\red\green
Technology: Moulding
Features: light structure, high strength
Description
Walkway grating plastic Xingbei is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold.It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. FRP grating is an ideal loading frame for corrosion circumstances.
Specification
ltem
Thickness(mm)
Mesh Size(mm*mm)
Panel size(mm)
weightkg/Souare Meter
1
25
19*19
1220*3660
1000*4040
12.5
2
25
38*38
1220*3660
1000*4040
12
3
30
12*12
1220*3660
20
4
30
38*38
1220*3660
1000*4040
16
5
38
38*38
1220*3660
1000*4040
20
6
50
50*50
1220*3660
21.6
